Welcome in the next from the Homelab upgrade series. Today as a part of the update we will cover upgrade of NSX 6.2.4 to NSX 6.3.1. VMware NSX 6.3.0 was the first release which supports vSphere 6.5. I already covered upgrade of ESXi 6.0 to 6.5 using different method along with vCenter Server upgrade.<!--more-->
<!--adsense-->
# Prerequisites

First and most critical part of the upgrade is to check on VMware Product Interoperability Matrix <a href="https://www.vmware.com/resources/compatibility/sim/interop_matrix.php#upgrade&solution=93" target="_blank" rel="noopener noreferrer">https://www.vmware.com/resources/compatibility/sim/interop_matrix.php#upgrade&solution=93 </a>if the upgrade path is supported.

![upgrade-of-nsx-6.2.4-to-nsx-6.3.1-1][2]

In my Homelab I am using NSX 6.2.4 Build 4292526 and upgrade to NSX 6.3.1 as a direct upgrade path is supported.

Second and perhaps most critical part of the upgrade is to perform the backup of NSX Manager. Once done let's start with NSX upgrade.

## Upgrade of NSX 6.2.4 to NSX 6.3.1

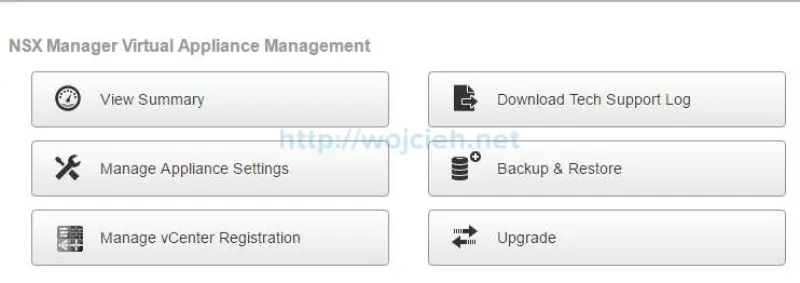

  1. Login to NSX Manager and click **Upgrade**.

    <img  src="/images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-2.webp" alt="Upgrade of NSX 6.2.4 to NSX 6.3.1 - 2" width="742" height="262" srcset="/images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-2.webp 742w, /images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-2-283x100.webp 283w, /images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-2-50x18.webp 50w, /images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-2-75x26.webp 75w" sizes="(max-width: 742px) 100vw, 742px"/>][3]

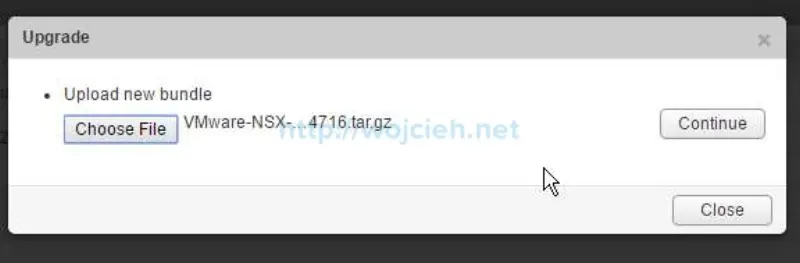

  2. Once again click Upgrade and point to NSX Manager upgrade bundle. Click continue.

    <img  src="/images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-3.webp" alt="Upgrade of NSX 6.2.4 to NSX 6.3.1 - 3" width="576" height="189" srcset="/images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-3.webp 576w, /images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-3-300x98.webp 300w, /images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-3-50x16.webp 50w, /images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-3-75x25.webp 75w" sizes="(max-width: 576px) 100vw, 576px"/>][4]

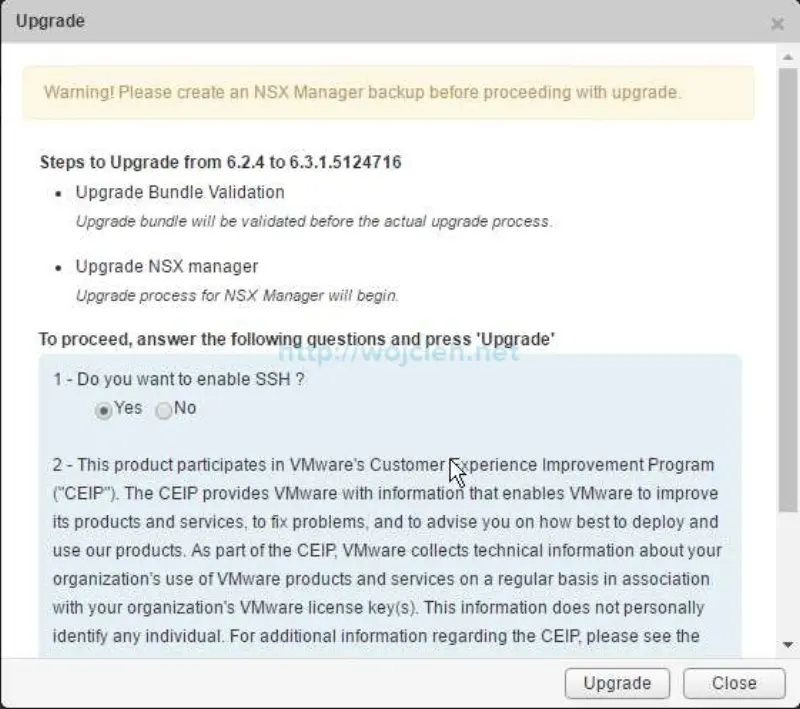

  3. Upgrade bundle upload starts. Once the upload is finished upgrade process will start.

    <img  src="/images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-4.webp" alt="Upgrade of NSX 6.2.4 to NSX 6.3.1 - 4" width="561" height="497" srcset="/images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-4.webp 561w, /images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-4-113x100.webp 113w, /images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-4-50x44.webp 50w, /images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-4-75x66.webp 75w" sizes="(max-width: 561px) 100vw, 561px"/>][5]

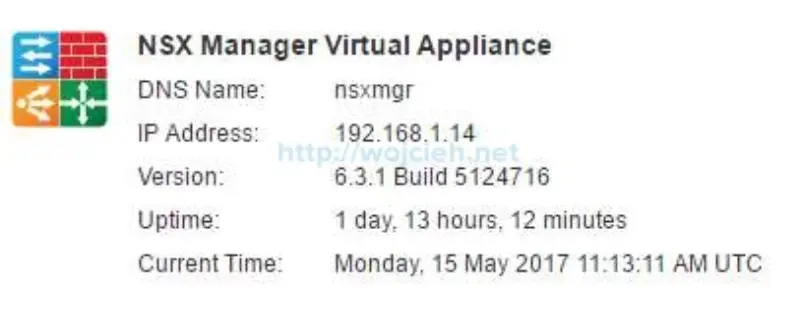

  4. Upgrade take a while. After few minutes and a reboot, we successfully upgraded NSX 6.2.4 to NSX 6.3.1.

    <img  src="/images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-5.webp" alt="Upgrade of NSX 6.2.4 to NSX 6.3.1 - 5" width="407" height="157" srcset="/images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-5.webp 407w, /images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-5-259x100.webp 259w, /images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-5-50x19.webp 50w, /images/uploads/2017/05/upgrade-of-nsx-6.2.4-to-nsx-6.3.1-5-75x29.webp 75w" sizes="(max-width: 407px) 100vw, 407px"/>][6]

## Summary

This post showed you how to upgrade existing NSX 6.2.4 to NSX 6.3.1.
